High grade connection terminals | AutoStart function on High level input

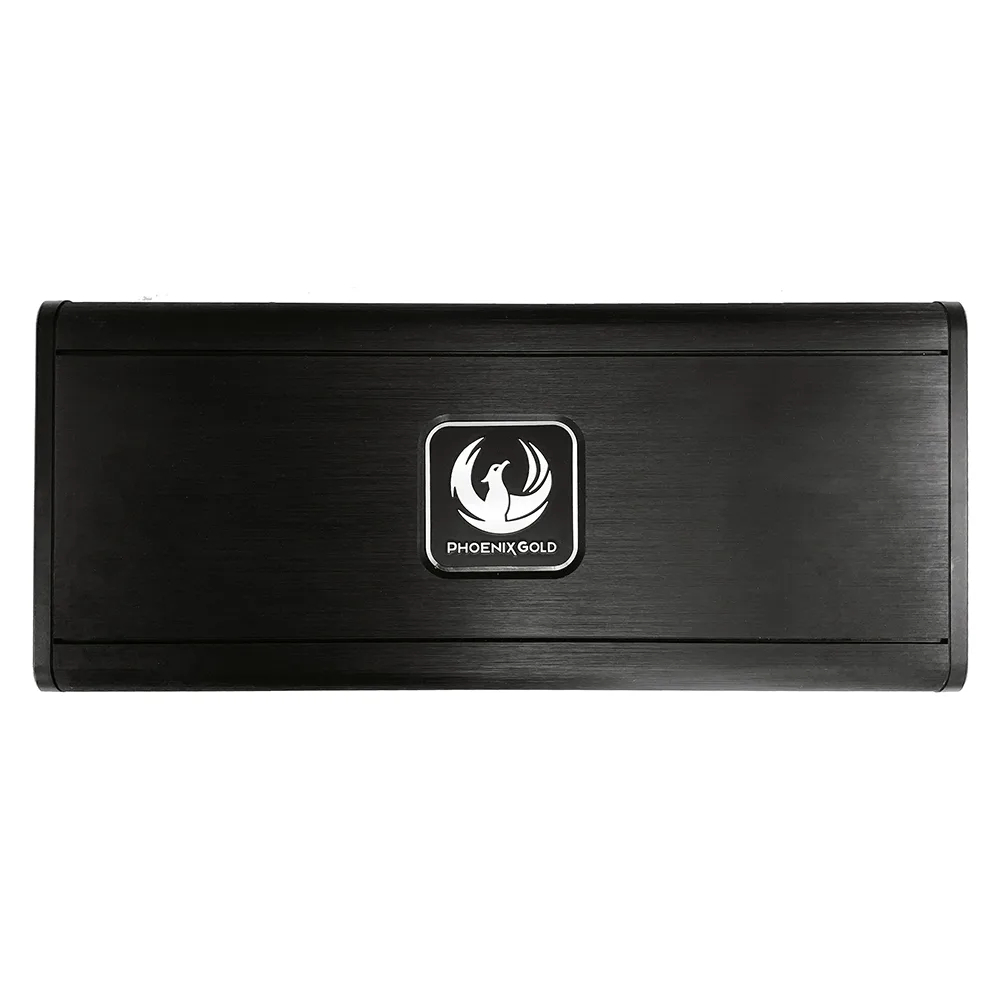

The ZT15001 is a powerful 1500W monoblock 24V Class-D Amplifier with a fantastic compact design suitable for even the smallest of installs. Featuring our high-quality signature gold design circuit board, the ZT15001 uses its high-grade connection terminal to ensure a clean crisp power delivery to all your components.
The ZT15001 is a powerful 1500W monoblock 24V Class-D Amplifier with a fantastic compact design suitable for even the smallest of installs. Featuring our high-quality signature gold design circuit board, the product uses its high-grade connection terminal to ensure a clean crisp power delivery to all your components.
ZT15001 Product Specifications:
Power Ratings (RMS)
1500W x 1 @ 1Ohm
1100W x 1 @ 2Ohm
600W x 1 @ 4Ohm
Class-D Technology
Frequency Response: 20Hz – 400Hz
Signal to Noise Ratio: >96dB
High & Low Pass Crossover 24dB per octave
Crossover Range: 50Hz – 250Hz
Subsonic Crossover Filter: 10Hz – 55Hz
Bass Boost: @ 45Hz 0 to +18db
Phase Control: 0-180
Low-High Level Input Range: 0.2V to 10V
Min Load Impedance: 1Ohm
Dimensions (LxWxH): 383 x 160 x 48mm
Includes Bass Controller
Why choose Phoenix Gold:
Phoenix Gold exists to give you a car audio experience of musical realism that will have you questioning if you’re riding around in a music studio or are sitting in the front row of a rock concert. Our product line is the result of a continued dedication to our key values of performance, innovation, quality, and excellence, bringing you The Gold Standard in Sound.
| Brand | Phoenix Gold |
|---|
