Pioneer TS-A3000LS4

Pioneer TS-A3000LS4

12″ – 1500w Max power, Single 4 Ohms Voice Coil – Shallow Mount Subwoofer

  • 1500 Watts Max Power (400 Watts Nominal)
  • Unique Design with just 3-1/2″ Mounting Depth
  • Small Enclosure Use (0.5 ~ 1.0 cu. ft.)
  • 4 ohms Single Voice Coil
  • Glass Fiber and Mica Reinforced IMPP Cone
  • Double reinforced Spider
  • 8-AWG Push Terminals
  • Rubber Surround
SKU TS-A3000LS4 Categories ,

Description

Easily Upgrade to High Performance
Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

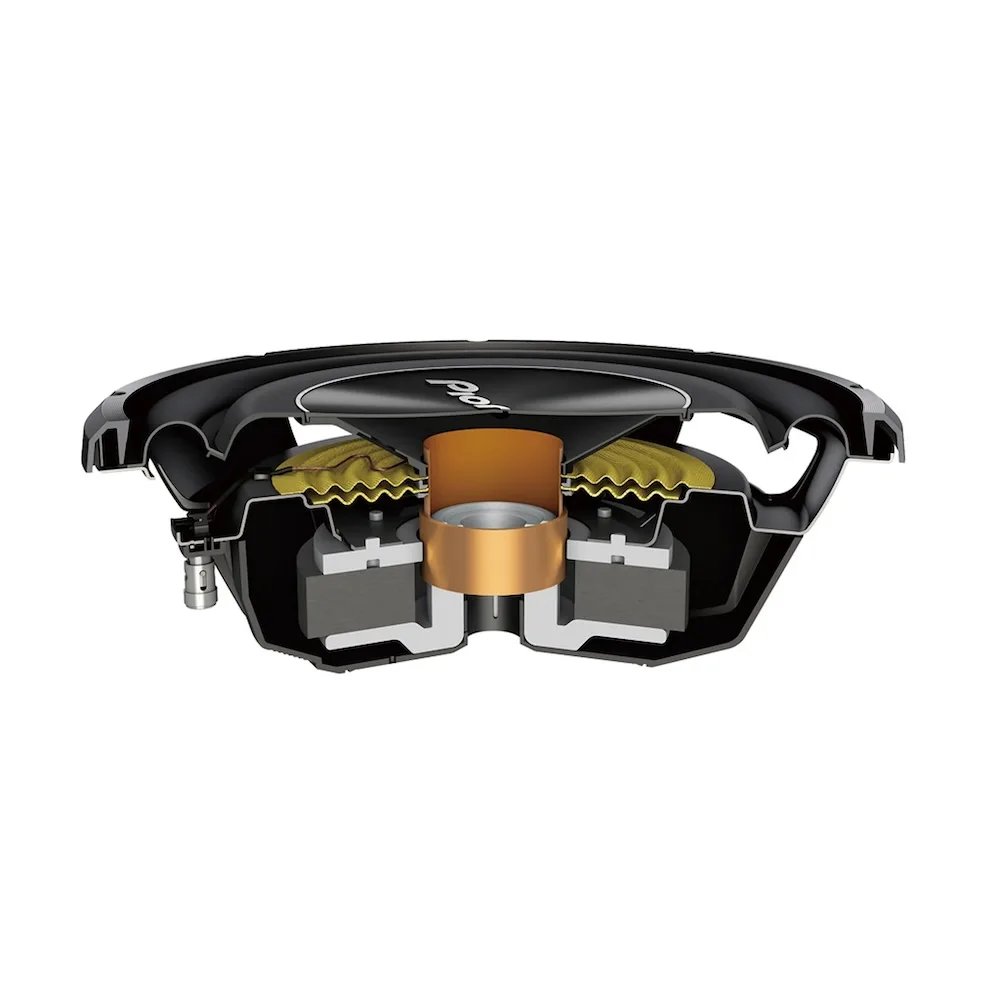

Reinforced Cone Structure
The cone structure of this subwoofer uses a highly rigid cone made with MICA injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.

Shallow Compact Design
Our line of shallow subwoofers are designed to provide wider installation options for a broad range of vehicles. These shallow-mount subwoofers feature multiple patent-pending features to deliver the big bass performance of a full-size subwoofer, but in a compact design that can be installed either behind or under seats depending on the type of vehicle. The mounting depth is just 3-1/2″ – less than half a typical subwoofer in this class.

Additional information

Brand

Pioneer

Key Features

  • System TypeComponent Subwoofer
  • Sensitivity (1W/1m)88dB
  • Frequency Range20 Hz to 1 kHz
  • CTA-2031 CompliantYes
  • Warranty1 Year
  • Continuous Power handling (RMS) – Watts400 Watts
  • Maximum Peak Power Handling – Watts1500 Watts
  • Nominal Impedance – OHM4
  • Speaker GrillSold separately (UD-12GL)

Build

  • ShapeRound
  • Size12″
  • Cone MaterialIMPP – Composite
  • Center Cap MaterialABS
  • Surround MaterialRubber
  • Surround TypeRolled
  • Basket MaterialStamped Metal
  • Magnet MaterialFerrite
  • Magnet Weight71.6 oz
  • Voice Coil TypeSingle Voice
  • Voice Coil BobbinKapton
  • Voice Coil wireCopper
  • DamperPoly cotton
  • GasketPP
  • Wire TerminalsPush Type
  • Unit Size (Dimensions)12-1/2″
  • Mounting Depth3-1/2″
  • Cut Out dimensions11-1/8″
  • Equivalent Compliance (VAS) [L]45.6
  • Free Air Resonance (Fs) [Hz]31
  • Total Speaker “Q” (Qts)0.54
  • Linear Excursion (Xmax) [mm]8.8
  • Recommended Sealed Box Volume [L]22.6
  • Port Box volume [L]22.6
  • Port Length5-7/8″
  • Port Diameter3″
