Description

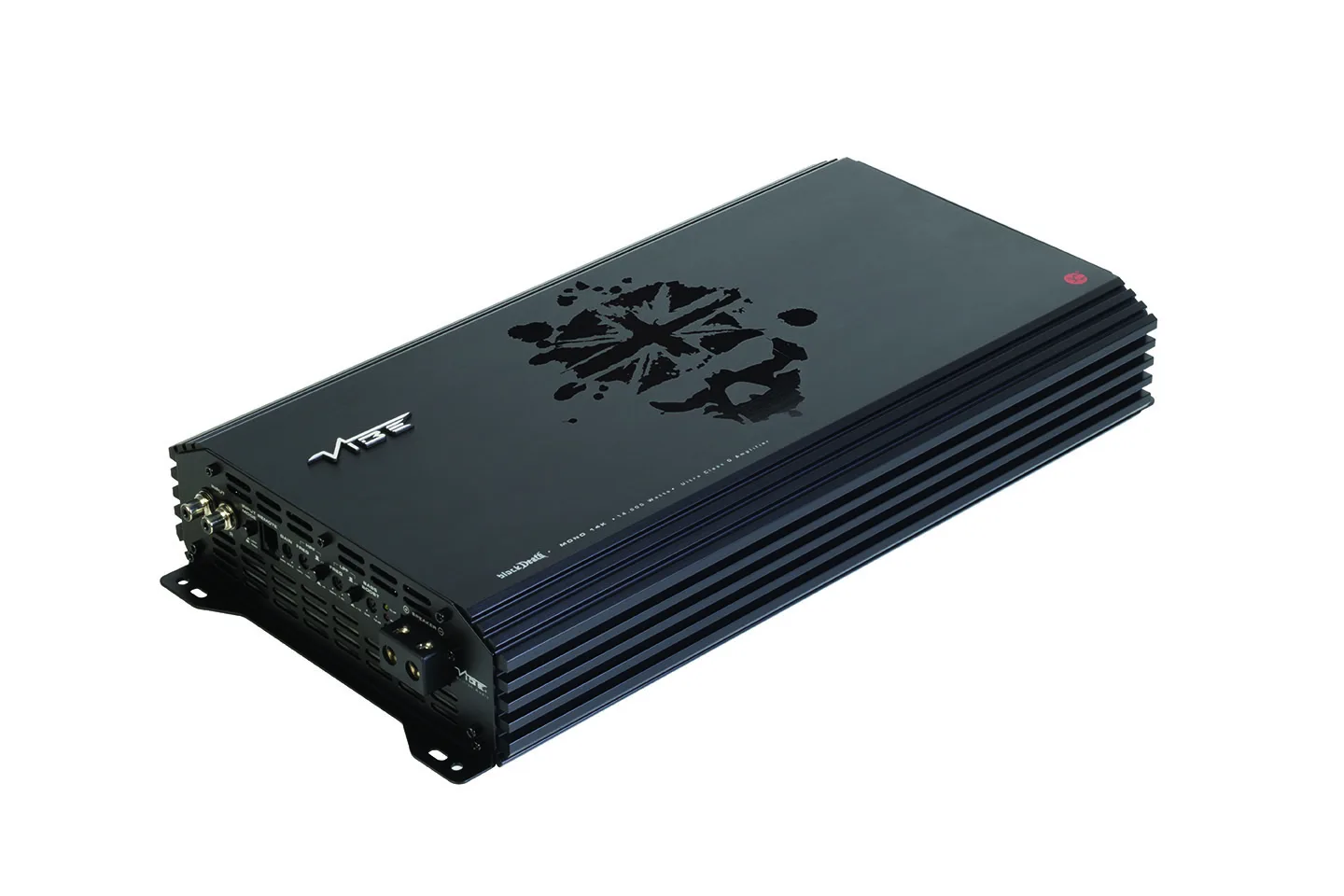

Korean Built Competition Full Range high power amplifier

Ultra class D delivers incredible efficiency of up to 92%, Wide frequency response allows use with not only subwoofers but also full range speaker systems, Unique combination FET technology delivers improved heat dissipation, Dual internal cooling fans improve runtime under extreme output conditions, Massive power output from a small footprint, typically 50% smaller than regular class D amplifiers, Full EMI and CE approval.

Specifications

• Model BLACKDEATHM8K-V6
• Configuration Competition Monoblock
• Dimensions (H x W x D) 2.7” x 12.6” x 8.9” (68mm x 320mm x 225mm)
• RMS @ 4Ω (14.4v 1% THD) 1650 watts
• RMS @ 2Ω (14.4v 1% THD) 2800 watts
• RMS @ 1Ω (14.4v 1% THD) 4000 watts
• Maximum Power 8000 watts
• Frequency Response 5Hz – 20kHz
• Crossover Type LP / HP
• Crossover Range 10Hz – 15kHz
• Input Sensitivity 200mv – 8V
• Efficiency 92%
• Operating Voltage 9v DC – 15v DC
• Recommended Fuse Rating 300A
• S N/R 90dB
• Topology Ultra Class D
